Scanners SEFELEC
Automate, secure, and speed up your tests thanks to our range of high‑precision scanners, also called switching matrices.

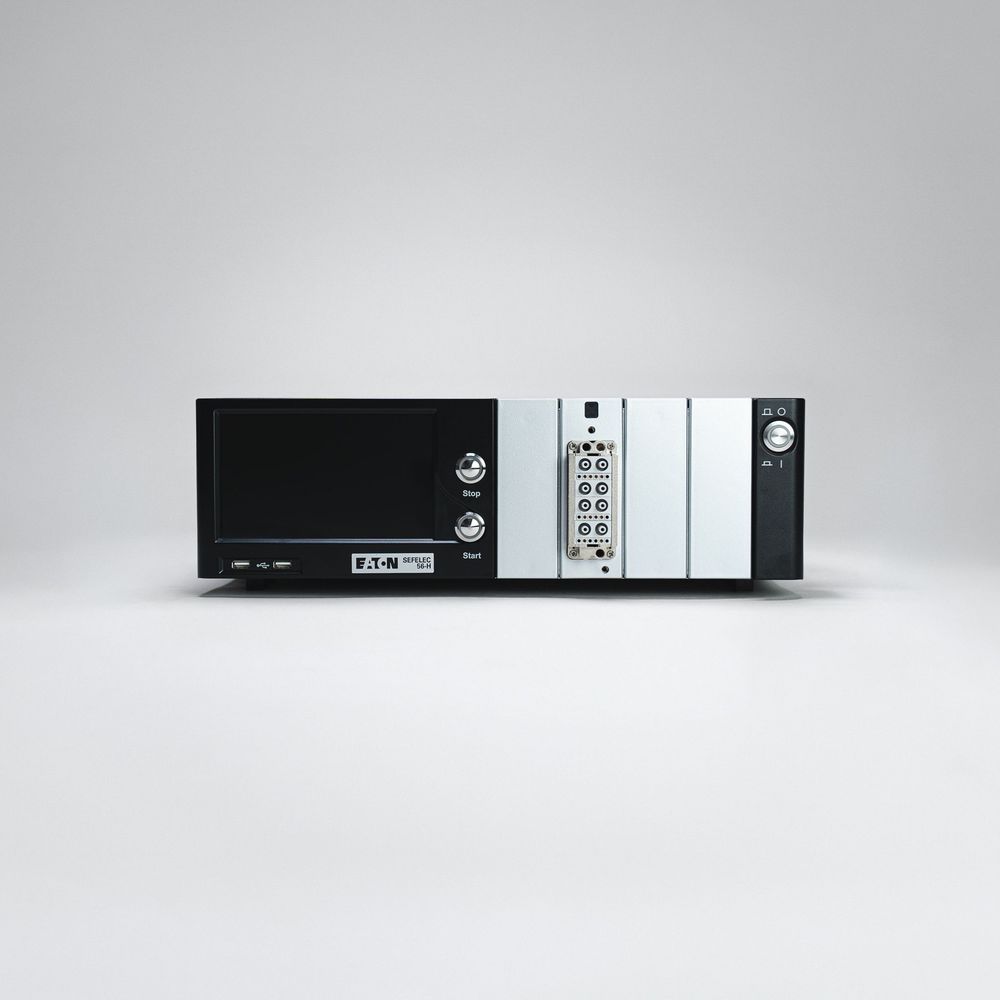

Internal scanner
External scanner
ADVANTAGES OF SEFELEC SCANNERS
- Automated testing: Safety, Quality, and Traceability - High precision and speed up to 512 points - Modular and scalable: expandable racks and selectable switching modules - Compact: up to 8 distinct 8‑channel modules per rack - Plug & Play solution: easy connection of the sample and intuitive programming - Programmable and controllable directly by a SEFELEC 5X or by WINPASS MX
CHOOSE YOUR SCANNER IN 3 STEPS:
DEFINE THE NUMBER OF TEST POINTS
SPECIFY THE TYPE OF TESTS AND MEASUREMENTS TO PERFORM
SELECT THE APPROPRIATE SWITCHING MODULES
SWITCHING MODULE TYPES
High‑Voltage Modules
| SEFM-8IHV or SEFM-4IHV | SEFM-8EHV & SEFM-8EHVHO | |
|---|---|---|
| Dielectric Strength | 5 kVAC 500 VA et 6 kVDC | 5 kVAC 500 VA et 6 kVDC |
| Insulation | > 10 GΩ à 1kVDC | De 200 GΩ à 1kVDC |
| COMPATIBILITY | OPTION SCANNER INTERNE | SEFELEC 64-SC |
High‑Current Modules
| SEFM-4IHVHC | SEFM-8EHC | |
|---|---|---|
| GROUND CONTINUITY | de 0 à 1Ω <32A AC max. | de 0 à 1Ω <32A AC max. |
| COMPATIBILITY | OPTION SCANNER INTERNE | SEFELEC 64-SC |
Switching Matrix: an essential tool to automate your electrical testing
A switching scanner is essential to automate, secure, and accelerate testing on products with numerous electrical points. Whether for factory acceptance testing, quality control, production, or laboratory use, it automatically routes high voltage, insulation measurements, or continuity checks to different points of a harness, enclosure, or complex subsystem. Why use a switching matrix (scanner)? Automation of multi‑channel testing: no human intervention required Reliable, repeatable results through controlled switching Operator safety: no need to manipulate live connections Faster production cycles thanks to automated test sequencing Industries using scanners Aerospace: aircraft harnesses, embedded systems Defense: critical subsystems Railway: cabinets, converters, wiring Automotive & e‑mobility: harnesses, power modules Energy & Industry: electrical cabinets, conversion systems
