CA 01

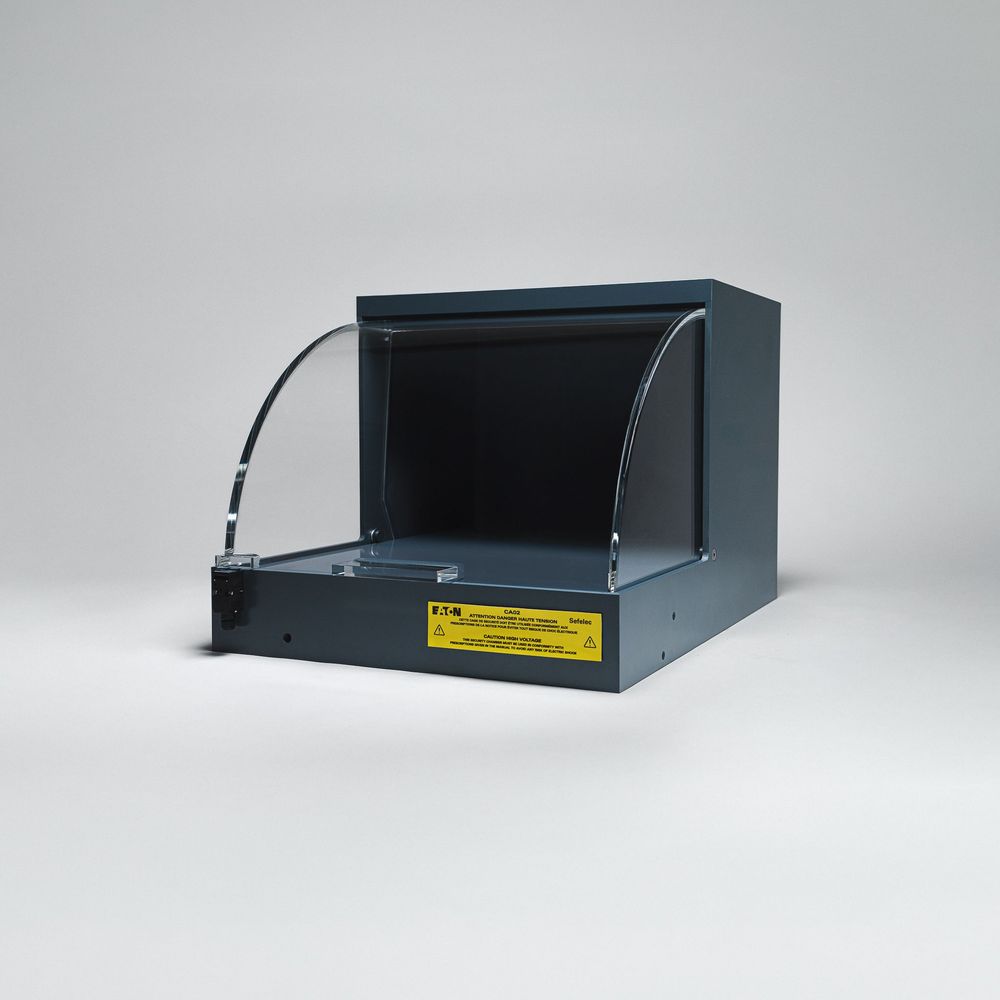

Safety Enclosure

The CA0 safety enclosures complement a dielectric strength test station, a megohmmeter, or a power supply, enabling high‑voltage tests to be performed safely thanks to the optional locking system. Our safety enclosures are available in three standard sizes, and we can also design custom enclosures tailored to your specific requirements.

Maximum operating voltage
15kVAC
Door‑opening detection
By an electromechanical switch with fork‑type actuator for 24 VAC or 24 VDC circuits
Locking system (optional)
By a Schmersal AZM170 safety interlock unit
Weight
13 Kg
INTERNAL DIMENSIONS

Width
390 mm
Door radius
212 mm
Volume
29 dm3
EXTERNAL DIMENSIONS

Width
430 mm
Height
345 mm
Depth
465 mm

Data sheets

THIS PRODUCT WORKS WITH

RECOMMENDED FOR ALL OUR MEASURING AND ELECTRICAL SAFETY DEVICES FEATURING DIELECTRIC STRENGTH TESTING AND/OR INSULATION TESTING FUNCTIONS.
