STANDARD IEC 61010-1

MGR10

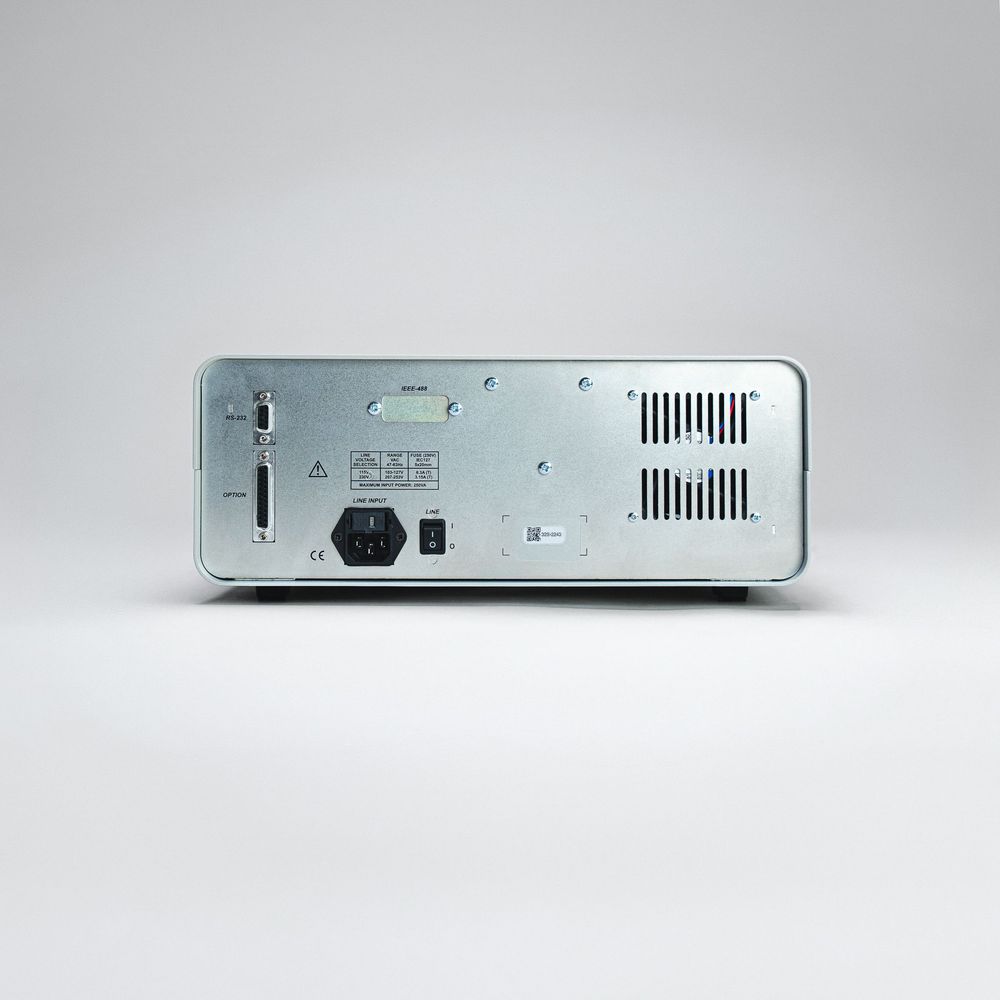

Micro‑ohmmeter

The MGR10 is a high‑acurracy digital micro‑ohmmeter featuring a 30,000‑count display. A battery‑powered version is also available to support your mobile testing needs. The MGR10 operates in 4‑wire (Kelvin) mode. This technique delivers a highly stable constant current through two wires while measuring voltage through the other two, ensuring accurate low‑resistance measurements. This instrument can also be connected to our SYNOR 5000 automatic cable testers to meet your extended testing and measurement requirements.

Maximum measurement
30 kΩ
Minimum resolution
0.1μΩ
Minimum current
10 μA
Maximum current
10A
Acurracy
0.03%
Battery
Oui
Height
131 mm
Width
440 mm
Depth
455 mm
