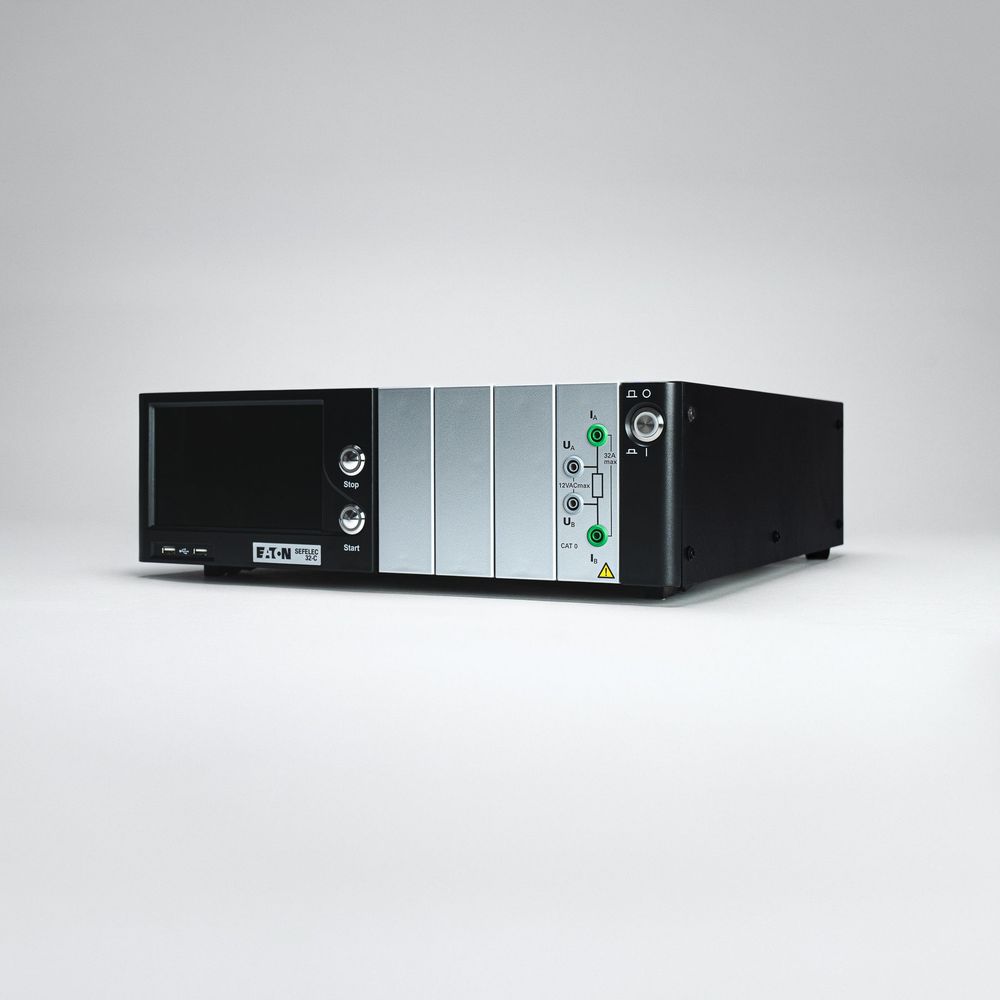

SEFELEC 32-C

The SEFELEC 32‑C is a new‑generation single‑function electrical safety tester (LVD) designed to perform protective‑earth continuity tests up to 32A (and optionally 50A). It is built and controlled using ARM Dual‑Core and DSP‑based components, providing the operator with improved measurement stability and repeatability. Its high acurracy and fast execution make it perfectly suited for production quality control as well as incoming inspection.

• TECHNICAL SPECIFICATIONS

  Ground bound max. current

  32 A AC (50 A AC in option)

  Resistance max

  100 mΩ (32 A AC) | 1Ω (5 A AC)

  HMI (Human‑Machine Interface)

  TFT tactile

  Communication interfaces

  Ethernet - RS232 - USB - API - Option GPIB
• DIMENSIONS

  Height

  131 mm

  Width

  440 mm

  Depth

  455 mm
