STANDARD IEC 61010-2-034

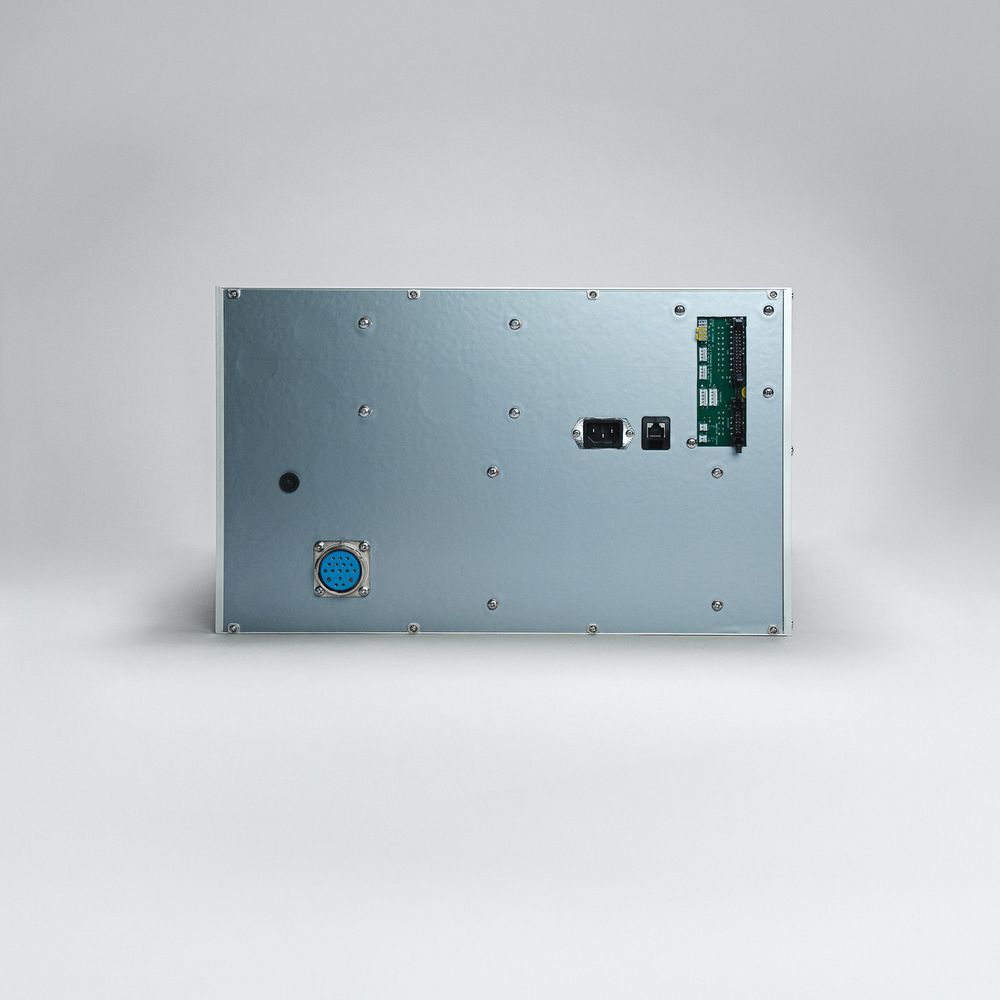

SYNOR 5000-R

Automatic cable tester

Ideal for test benches or integration into larger systems Expandable using SYNOR 5000‑CS bays DIN 41612 connector outputs Large selection of switching cards Ethernet & PLC interfaces

Test points
2 048 points (extendable)
Max switching cards
16
Continuity
1 mΩ to 2kΩ
Insulation
50 kΩ to 5GΩ
Dielectric strength
adjustable 500 μA to 10 mA
Functionnal
up to 2120 VDC / 1500 VAC
Components
Diodes, Diodes ZENER, resistors, capacitors...
Height
265 mm
Width
437 mm
Depth
485 mm

Data sheets

This product works with

Suite Winpass 5000

Software for automatic cable tester SYNOR 5000
