Cables, harnesses and backplanes tests

Pour les faisceaux, harnais et cartes de fonds de paniers en production, nos testeurs SYNOR 5000 permettent de réaliser des tests de continuité à 2 et 4 fils, d’isolement jusqu‘à 5 GΩ , de rigidité jusqu’à 5 kVAC et 6 kVDC, ainsi que le test de composants et des tests fonctionnels avec stimuli intégrés. Notre plateforme logicielle Winpass 5000 permet d’effectuer des tests simples ou complexes grâce à la gestion de projets.

TESTS FOR HARNESSES, CABLES & BACK PLANES

For bundles, harnesses and backplanes in production, our SYNOR 5000 testers allow you to conduct continuity tests with 2 and 4 wires, insulations tests up to 5 GΩ, strength tests up to 5 kVAC and 6 kVDC, as well as the component test and functional tests with integrated stimuli. Our Winpass 5000 software platform allows you to conduct simple or complex tests thanks to project management.

• SYNOR 5000P Compact et transportable, pouvant fonctionner sans PC.

• SYNOR 5000H Pour applications industrielles. Transportable et

extensible.

• SYNOR5000D Pour applications de terrain ou embarquées. Extensible.

• SYNOR5000C Armoire 19” pour les gros volumes de points de test.

• SYNOR 5000P : Compact and transportable, able to operate without a PC.

• SYNOR 5000H : Industrial applications. Transportable and extendible.

• SYNOR 5000D : On the spot or embedded applications. Extendible.

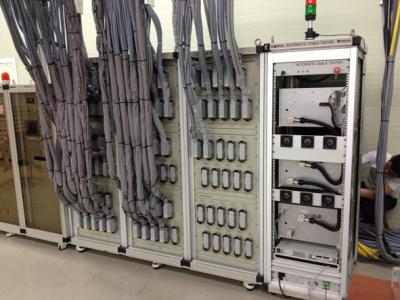

• SYNOR 5000C : 19” rack for large volumes of test points.

Product	Description
SYNOR5000-P	Compact high voltage cable tester
SYNOR5000-H	High voltage cable tester in 7U high case
SYNOR5000-R	6U rack high voltage cable tester to be integrated
SYNOR5000-C	Full bench integrated high voltage tester

SYNOR5000-P

0€

Compact high voltage cable tester

SYNOR5000-H

0€

High voltage cable tester in 7U high case

SYNOR5000-R

0€

6U rack high voltage cable tester to be integrated

SYNOR5000-C

0€

Full bench integrated high voltage tester
